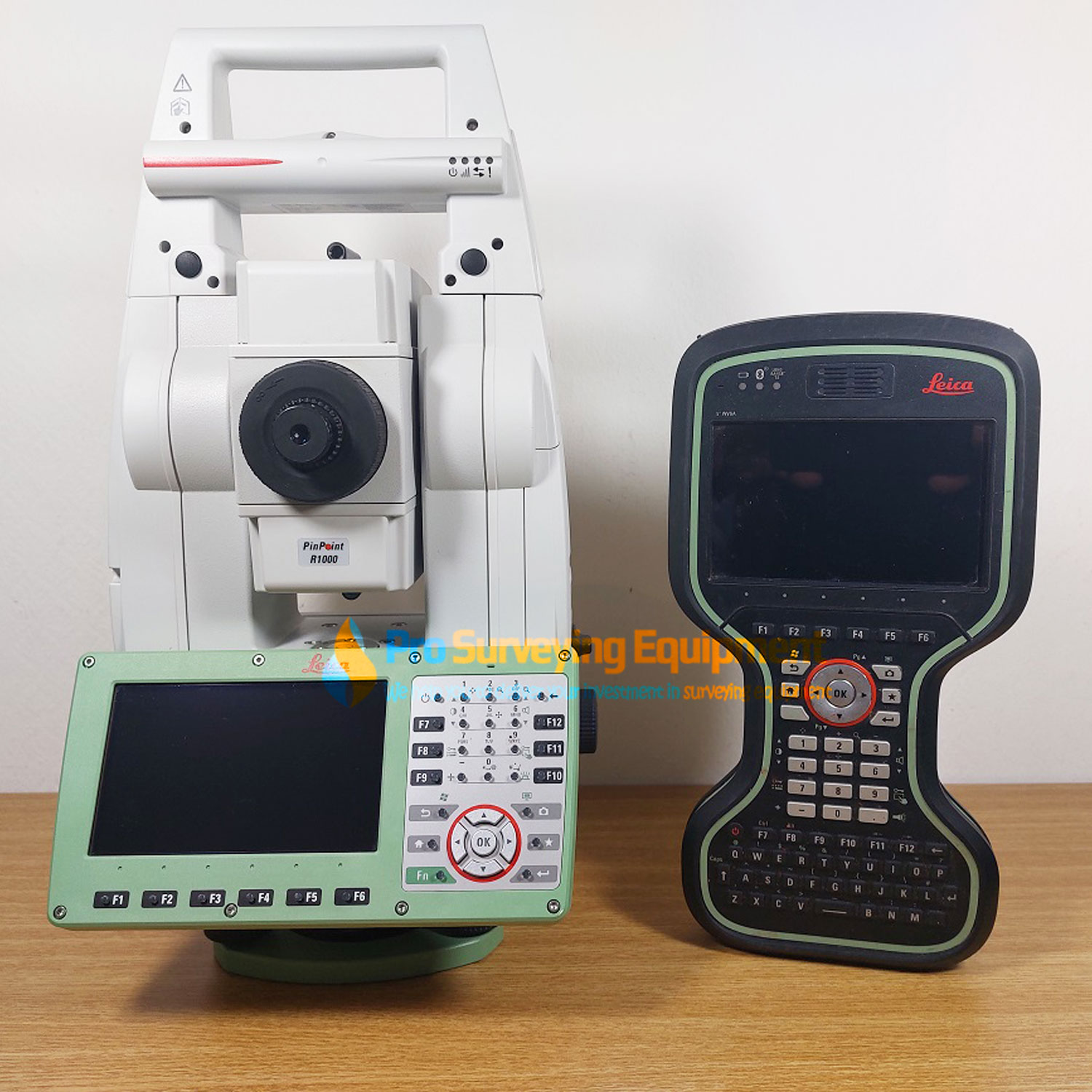

Leica TS16 I 3 R1000 CS20 Robotic Total Station

Sale Leica TS16 I 3 R1000 CS20 Robotic Total Station, fully inspected, serviced and calibrated by Leica Authorized. All functions are in excellent working and operates flawlessly according to Leica standards.

Experience precision and reliability with the Leica TS16 I 3 R1000 Robotic Total Station, fully calibrated and ready to survey. This is a 3” sec second gun, has a RH16 blue tooth handle, red laser, ATR, EGL, Power Search and over-view camera. It also has dual displays. It has Captivate Measure and Stakeout-Captivate Measure Stake Line-Captivate Traverse, so it can be used as a two-man gun or robotic with a CS20 data collector.

Includes:

• Leica TS16 I R1000 3” sec Robotic Total Station
• Captivate Measure and Stakeout, Captivate Measure Stake Line and Traverse on board
• Leica CS20 LTE with Captivate (4G model)
• Leica RH16 Handle
• Leica GRZ4 360 PrisM
• 2X Batteries for the Station
• Charger
• 2X Carry cases

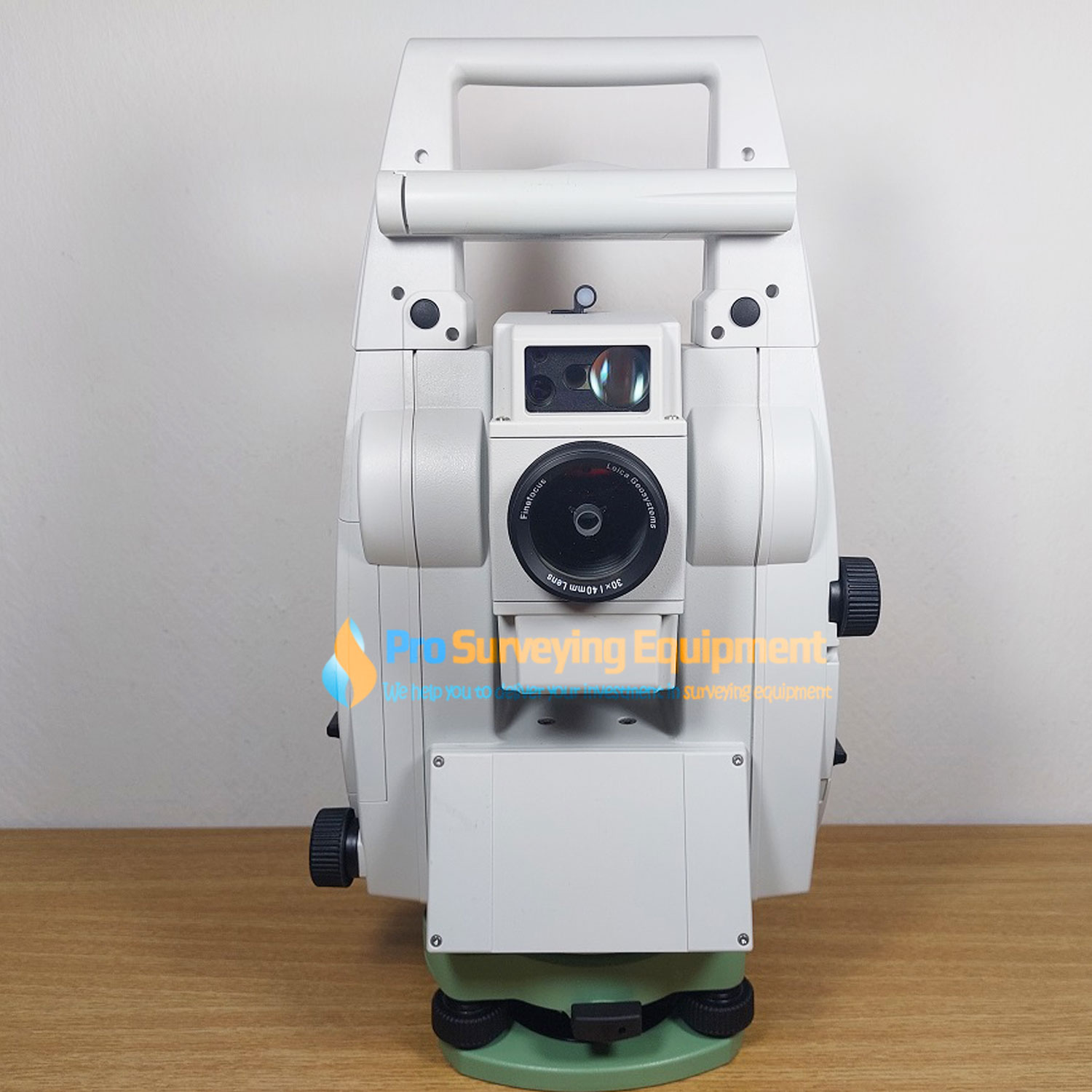

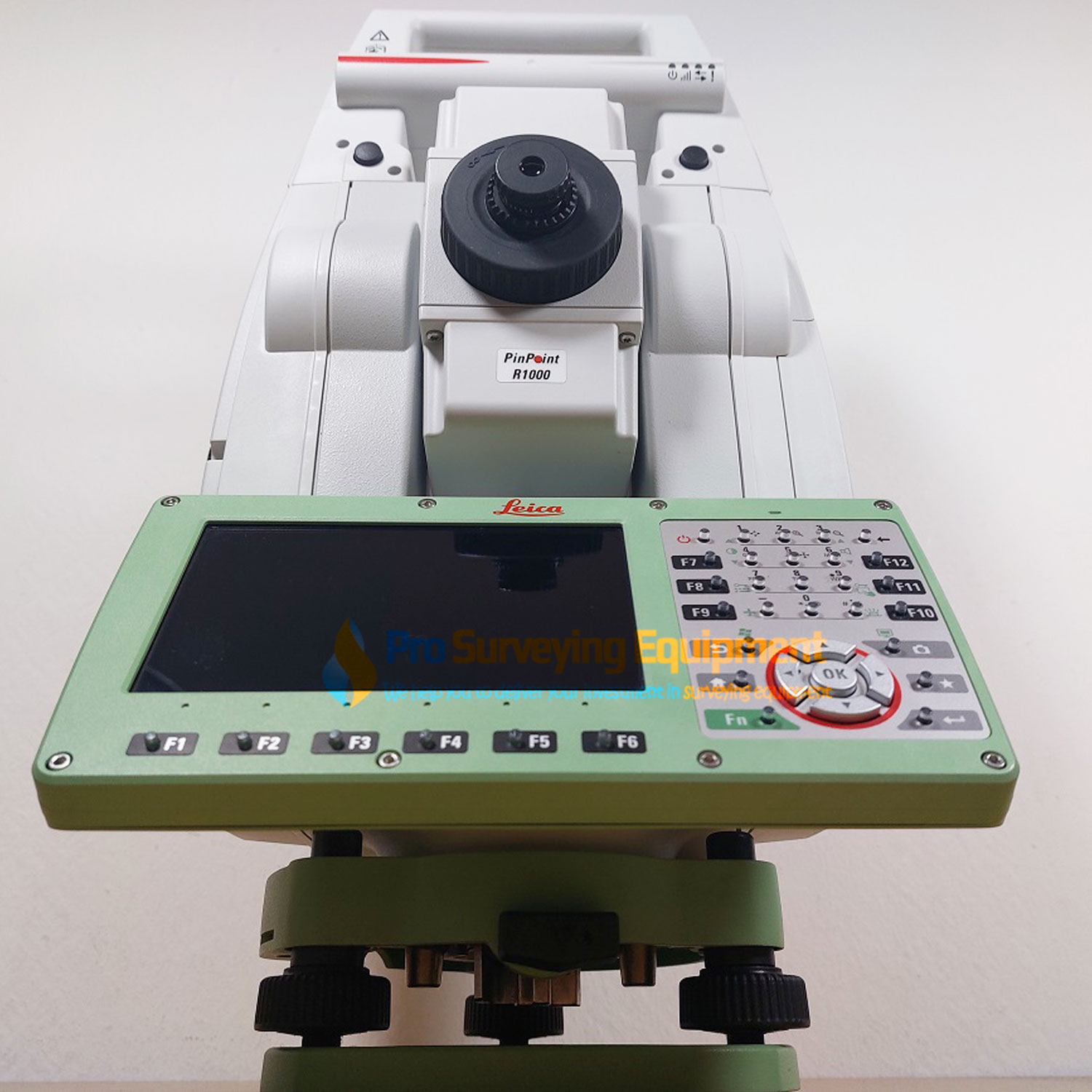

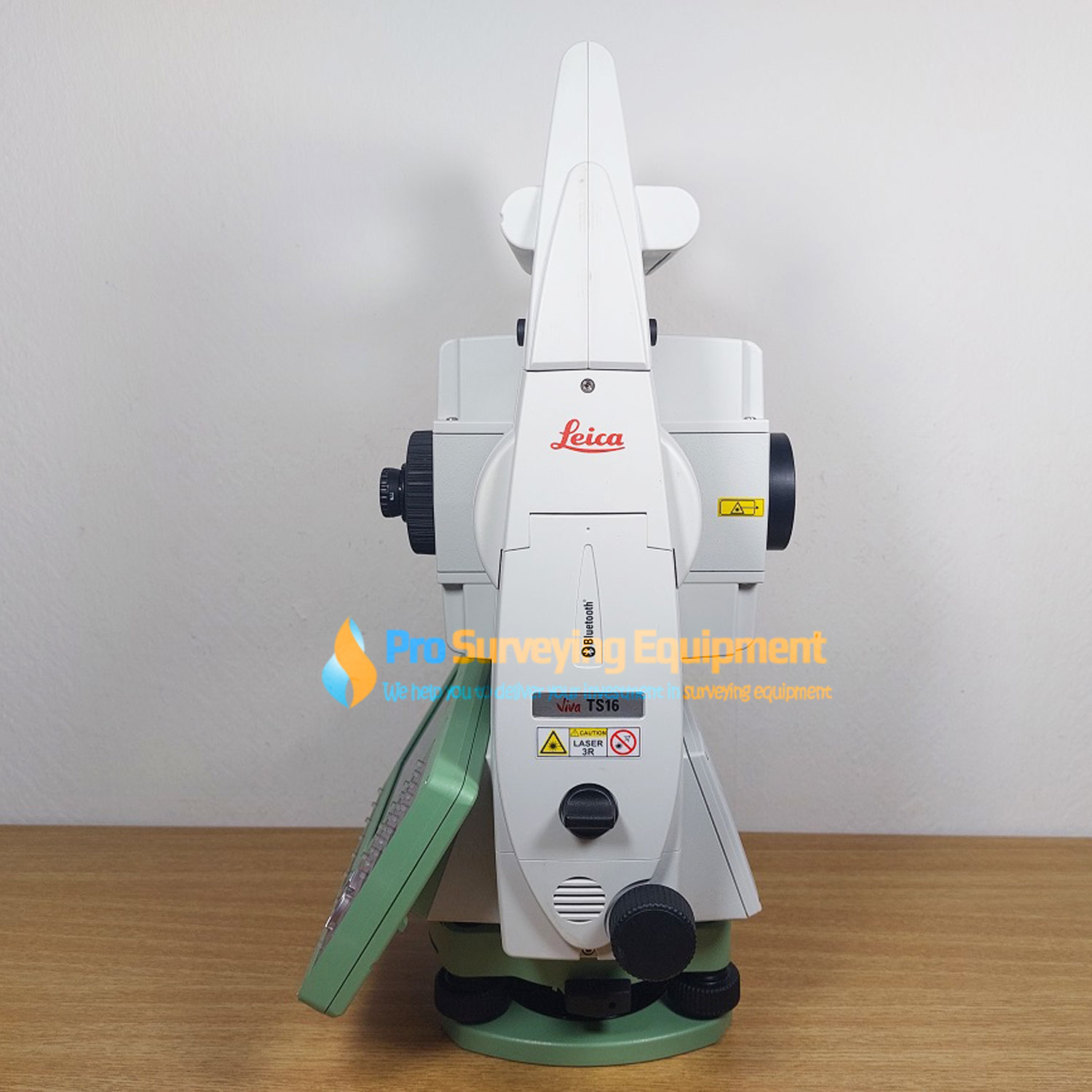

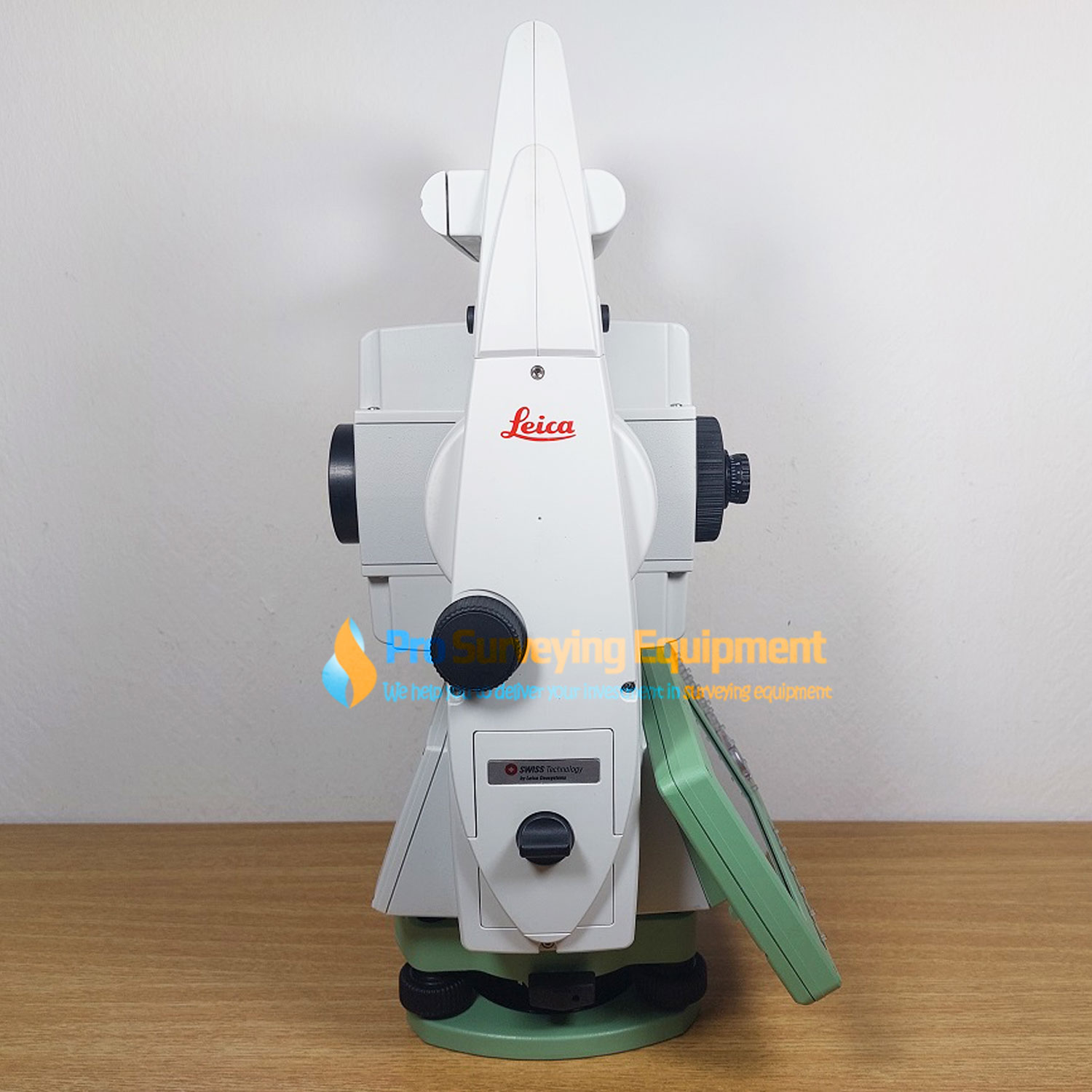

Leica TS16 Robotic Total Station

The Leica TS16 is described as ”the world’s first self-learning total station”, capable of automatically adjusting to any environmental conditions. Its targeted users are surveyors and engineering surveyors in the field, who face demanding conditions and need robust performance.

Key Features:

• Self-learning capability: The instrument continuously learns the site environment and adapts to deliver reliable target locking, even in challenging conditions such as rain, fog, dust, heat shimmer, or reflections.
• ATRplus automation: This is Leica’s automated target-locking technology, with high precision and fast re-lock when line of sight is interrupted.
• Imaging & wide-angle overview camera: According to one dealer site, the TS16 (especially “I” version) offers a 5 megapixel overview camera and video frame rate up to 20 Hz for onboard and remote use.
• Pinpoint distance measurement: The TS16 supports a measurement range of up to 1000 m (depending on model) with a small visible measurement beam spot size.
• Software integration: Uses Leica Captivate field software for intuitive field workflow and bridges to office software like Leica Infinity

Applications:

• Suitable for a wide range of applications: topographic surveying, construction layout, monitoring of infrastructure, and other demanding surveying tasks. The brochure notes it “exceeds expectations” regardless of how challenging the task or distractions are on site.

Technical Highlights (varies by model):

• Angular accuracy: models available at 5″, 3″, 1″ (depending on version)
• Reflectorless (or target) range: Up to 1000 m for certain models.
• Weight: Approximately 5.3–6 kg including battery (for some versions)
• Operating environment: Built for the field, robust design for professional use

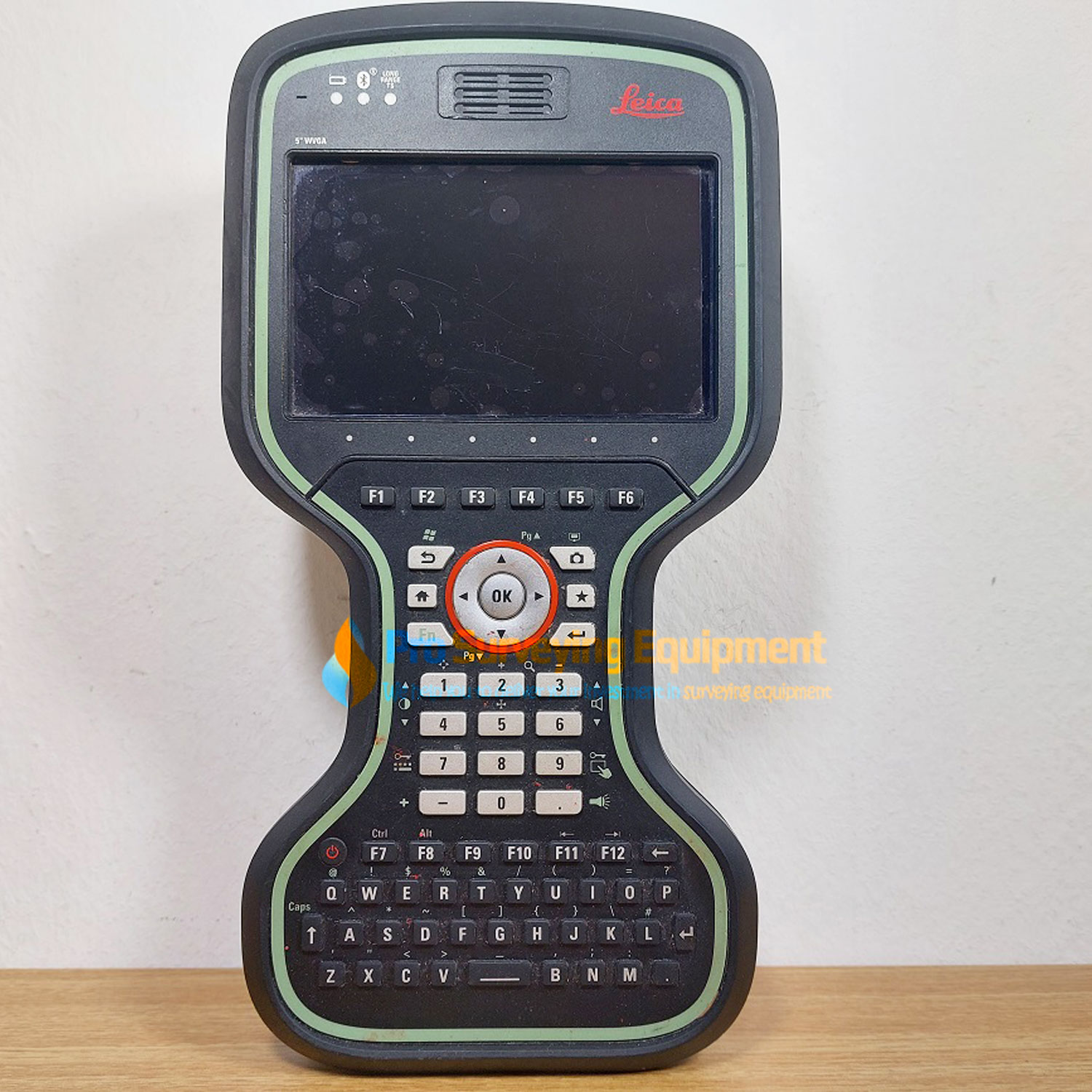

Leica CS20 Field Controller

The CS20 is Leica’s purpose-built field controller optimized for surveying tasks (measuring and stake-out) using Leica Captivate software. It offers “complete mobility” and is designed for field use with robust performance.
