Olympus Omniscan MX2 16:128 Flaw Detector

Price: $8,000

For sale Olympus Omniscan MX2 16:128 Phased Array Flaw Detector, fully loaded with software options (TOFD, Multi-group, ES Beam Tool, etc.), and is a 16:128 Module.

This Olympus Omniscan MX2 16:128 coming directly out of a training environment, where it was rarely used, everything still in excellent perfect working condition. The unit is also touch screen works very well, and has an extremely large 10 inch screen. All buttons and scroll wheel are very responsive to use, the connectors are all clean. All are works flawlessly

Sale includes:

  • Olympus Omniscan MX2 16:128 Phased Array Ultrasonic Flaw Detector (16:128 Module)
  • Battery
  • Charger
  • Accessory Cable
  • Owners Manual
  • Hard Case

OmniScan MX2, the Standard in Phased Array, Redefined

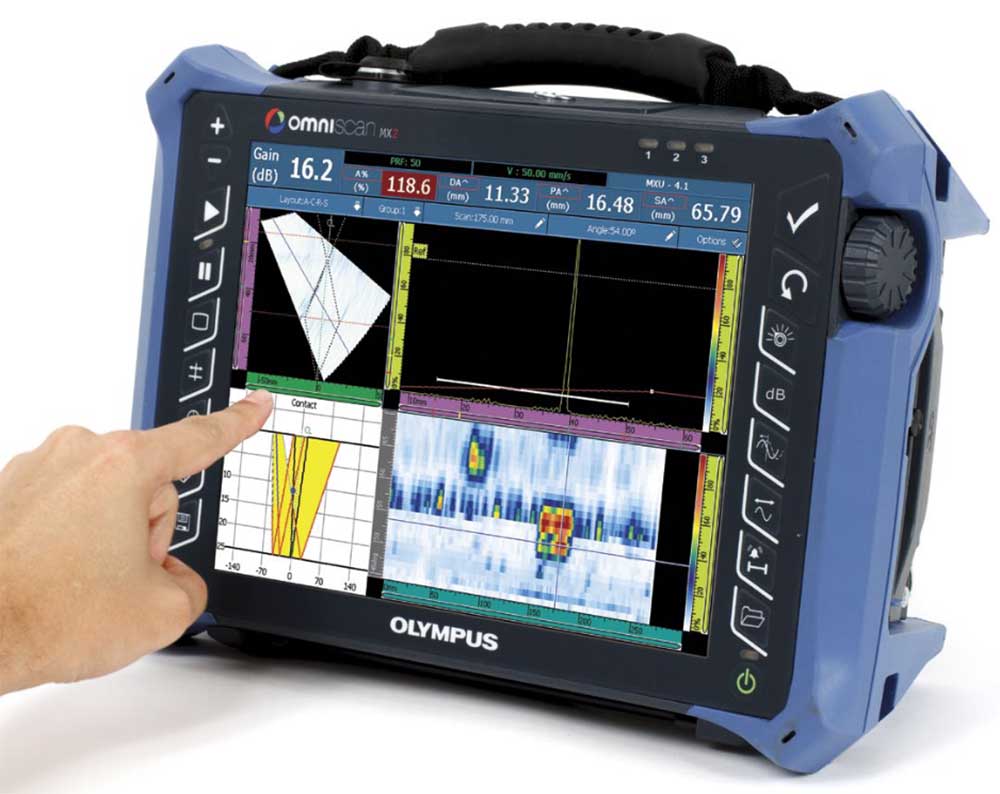

Olympus-OmniScan-MX2

Following the world wide success of the Omniscan MX, the Omniscan MX2 raises the bar, still offering the Omniscan MX reliability combined with touch screen technology. The result of over 10 years of proven leadership in modular NDT test platforms, the OmniScan MX has been the most successful portable and modular phased array test instrument produced by Olympus to date, with thousands of units in use throughout the world.

This second generation OmniScan MX2 increases testing efficiencies, ensuring superior manual and advanced AUT application performance with faster setups, test cycles, and reporting, in addition to universal compatibility with all phased array and ultrasound modules: past, present and future. Designed for NDT leaders, this high-end, scalable platform delivers true next-generation NDT performance.

The OmniScan MX2 offers a high acquisition rate and new powerful software features for efficient manual and automated inspection performance—all in a portable, modular instrument.

Powerstart your day the right way with the OmniScan MX2. The OmniScan MX2 simplifies and speeds up the setup process with its new WeldOverlay software feature, so you can start testing immediately. Featuring the industry-standard phased array user interface with faster-than-ever performance,a bigger and brighter 10.4 in. screen, new and unique intuitive touch-screen capabilities, and faster data transfer, enabling you to get to your next inspection quicker.

The OmniScan MX2 is now designed for IP66, and built to withstand the drops, spills, and abuse that typically occur in the most demanding inspection environments

This second generation OmniScan MX2 increases testing efficiency, ensuring superior, advanced AUT application performance with faster setups, test cycles, and reporting, in addition to universal compatibility with several phased array and ultrasound modules.

Designed for NDT experts, this high-end, scalable platform delivers true next-generation NDT performance.

The OmniScan MX2 offers a high acquisition rate and new powerful software features for efficient manual and automated inspection performance—all in a portable, modular instrument.

The OmniScan MX2 simplifies and speeds up the setup process with its intuitive step-by-step Wizard, so you can start testing quickly.

Featuring the industry-standard phased array user interface with faster-than-ever performance, a bigger and brighter 10.4 in. (26.4 cm) screen, new and unique intuitive touch-screen capabilities, and faster data transfer, the MX2 enables you to get to your next inspection quicker.

- Large, 10.4 in. (26.4 cm) touch screen
- Multigroup capability
- Two-axis encoding and data archiving capacity
- Modular platform
- Complete evolving range of modules

Key Features

  • Aperture: 16
  • Number of elements: 128
  • Bright, large touch screen
  • New phased array and TOFD modules
  • New NDT setupBuilder design software
  • New OmniPC analysis software

Applications

  • Phased array weld inspection
  • ToFD weld inspection
  • P/E weld inspection
  • General component inspection
  • Pressure vessel inspection
  • Composite inspection
  • Corrosion mapping inspection
  • Multi-group inspection

OmniScan MX2 Mainframe Specifications:

Dimensions 325 x 235 x 130 mm (12.8 x 9.3x 5.1 in.)
Weight 3.2 kg (7 lb), no module and one battery
Data Storage
Storage devices SDHC card, most standard USB storage devices, or fast Ethernet
Data file size 300 MB
I/O Ports
USB ports 3
Audio alarm Yes
Video output Video out (SVGA)
Ethernet 10/100 Mbps
I/O Lines
Encoder 2-axis encoder line (quadrature, up, down, or clock/direction)
Digital input 4 digital TTL inputs, 5 V
Digital output 4 digital TTL outputs, 5 V, 15 mA
Acquisition on/off switch Remote acquisition enabled TTL, 5 V
Power output line 5 V, 500 mA power output line (short-circuit protected)
Alarms 3 TTL, 5 V, 15 mA
Analog output 2 analog outputs (12 bits) ±5 V in 10 kΩ
Pace input 5 V TTL pace input
Display
Type TFT LCD
Size 26.4 cm (10.4 in.) (diagonal)
Resolution 800 pixels x 600 pixels
Brightness 700 cd/m2
Number of colors 16 million

Power Supply

Battery type Smart Li-ion battery
Number of batteries 1 or 2 (battery chamber accommodates two hotswappable batteries)
Battery life Minimum 7 hours with two batteries

Environmental Specifications

Operating temperature range -10 °C to 45 °C (14 ºF to 113 ºF)
Storage temperature range –20 °C to 60 °C (–4 ºF to 140 ºF) with batteries
–20 °C to 70 °C (–4 ºF to 158 ºF) without batteries
Ingress Protection Rating Designed for IP66
Shockproof rating Drop-tested according to MIL-STD-810G 516.6
MX2 Module Compatibility
MXU 4.1R8 and later OMNI-M2-PA32128PR
MXU 4.0 and later
  • OMNI-M2-PA1664
  • OMNI-M2-PA16128
  • OMNI-M2-PA32128
  • OMNI-M2-UT-2CH
MXU 3.1 and MXU 4.1R9 and later OMNI-M-UT-8CH



Phased Array Module Specifications (Applies to OMNI-M2 modules)

Connectors
  • 1x Phased Array connector: Olympus PA connector
  • 2x UT connectors: LEMO 00
Number of focal laws 256
Probe recognition Automatic probe recognition
Dimensions 226 x 183 x 40 mm (8.9 x 7.2 x 1.6 in.)
Weight 1.6 kg (3.5 lb)
Pulser/Receiver
Aperture 32 elements
Number of elements 128 elements
Pulser
PA Channels UT Channels
Voltage
40 V, 80 V, and 115 V 95 V, 175 V, and 340 V
Pulse width
Adjustable from 30 ns to 500 ns, resolution of 2.5 ns Adjustable from 30 ns to 1,000 ns; resolution of 2.5 ns
Pulse shape
Negative square pulse Negative square pulse
Output impedance
25 Ω <30 Ω
Receiver
PA Channels UT Channels
Gain
0 dB to 80 dB, maximum input signal 550 mVp-p (full-screen height) 0 dB to 120 dB maximum input signal 34.5 Vp-p (full-screen height)
Input impedance
65 Ω 60 Ω in pulse-echo mode
50 Ω in pulse-receive mode
System bandwidth
0.5 MHz to 18 MHz (NOTE: The previously stated 0.6 MHz lower limit used a strict −3 dB attenuation for the cutoff frequency.) 0.25 MHz to 28 MHz (–3 dB)
Beamforming
Scan type Sectorial and linear
Group quantity Up to 8
Data Acquisition
Digitizing frequency 100 MHz
Maximum pulsing rate Up to 10 kHz (C-scan
Data Processing
PA Channels UT Channels
Number of data points

Up to 8,192

Real-time averaging
2, 4, 8, 16 2, 4, 8, 16, 32, 64
Rectifier

RF, full wave, half wave +, half wave –

Filtering
3 low-pass, 6 band-pass, and 4 high-pass filters. 3 low-pass, 6 band-pass, and 3 high-pass filters (3 low-pass filters when configured in TOFD)
Video filtering

Smoothing (adjusted to probe frequency range)

Data Visualization
A-scan refresh rate Real time: 60 Hz
Data Synchronization
On internal clock 1 Hz to 10 kHz
On encoder On 2 axes: from 1 to 65,536 steps

Programmable Time-Corrected Gain (TCG)

Number of points 32: One TCG curve per focal law
Alarms
Number of alarms 3
Conditions Any logical combination of gates
Alarm outputs 2
