Olympus Omniscan X3 32:128 PR Phased Array Flaw Detector

Price: $13,500

Sale Olympus Omniscan X3 32:128PR Phased Array Ultrasonic Flaw Detector, Transducers, Wedges and Probes, Calibration Certificate

Everything still in excellent perfect working condition. Fully serviced and calibrated, work flawlessly with manufacturing working standards. Still like new, rarely used in a training environment only. This unit is in excellent working condition with Calibration Certificate, Transducers, Wedges and Probes. A complete workhorse and had the tools to help you complete your work efficiently.

Package includes;

  • Olympus Omniscan 32:128 PR
  • Battery and Charger with Power Cord
  • XAAB-0293 Connect Cable
  • Olympus SL16 A10 Transducer
  • SA10 55 Degree Wedge
  • GE Gamma 5mhz .50 x.50 Dual Element Transducer
  • Screen Protector
  • Travel Case

OmniScan X3 Flaw Detector

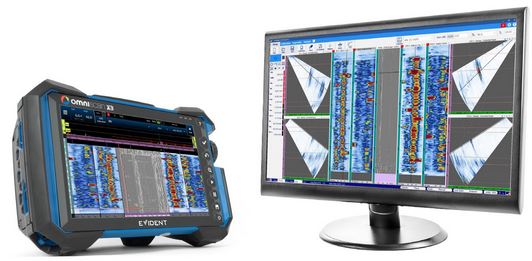

October 30, OmniScan-X3-complete-phased-array2019 Olympus Corporation is pleased to announce the new OmniScan X3 flaw detector recognized globally as the benchmark for portable phased array ultrasonic testing (PAUT). Elevates the standard with innovations that improve the entire inspection workflow. Setting up for a job is faster and more efficient while total focusing method (TFM) images collected through full matrix capture (FMC) give users more confidence in their decision making. When an inspection is complete, leading-edge software tools make analysis and reporting easier.

The new OmniScan X3 flaw detector setting up for a job is faster and more efficient while total focusing method (TFM) images collected through full matrix capture (FMC) give users more confidence in their decision making. When an inspection is complete, leading-edge software tools make analysis and reporting easier.

The OmniScan X3 flaw detector combines the essential tools needed for PAUT inspections, such as TOFD, two UT channels, eight groups and 16:64PR, 16:128PR and 32:128PR configurations*, with powerful innovations, including:

  • TFM/FMC with 64-element aperture support
  • Improved phased array imaging, including an innovative live TFM envelope feature
  • Acoustic influence map (AIM) simulator for TFM mode
  • 25 GB file size
  • Up to 1,024 × 1,024-pixel TFM reconstruction and four simultaneous, live TFM propagation modes
  • Simplified user interface with onboard scan plan
  • Wireless connectivity to the Olympus Scientific Cloud™ (OSC) makes it simple to keep the instrument’s software up to date

The comprehensive onboard scan plan tool enables users to visualize the inspection, helping reduce the risk of errors. The entire scan plan, including the TFM zone, can be created in one simple workflow. Creating a setup is also faster with improved calibration tools and support for simultaneous probe and beam set configuration, onboard dual linear, matrix and dual matrix array creation and automatic wedge verification.

Certified IP65 dust proof and water resistant, the instrument has the reliability and ease of use that OmniScan flaw detectors are known for combined with high-quality images that help make interpreting flaws more obvious. With the total focusing method, users can produce geometrically correct images to confirm the characterization of flaws identified through conventional phased array techniques and obtain better images throughout the volume of a part. Additional features that enable outstanding images include a 16-bit A-scan, interpolation and smoothing and a vivid 10.6-inch WXGA display that provides clarity and visibility in any light.

The OmniScan X3 flaw detector makes analysis and reporting faster, both onboard the instrument and on a PC. The instrument also comes with a variety of helpful data interpretation tools.

Circumferential outside diameter (COD) TFM image reconstruction to facilitate interpretation and sizing of long seam weld indications Merged B-scan to facilitate the screening of phased array weld indications while keeping the workflow simple Whether inspecting pipes, welds, pressure vessels or composites, the OmniScan X3 flaw detector enables users to complete their work efficiently and interpret flaws with confidence.

OmniScan X3 Series Specifications

These specifications apply to all OmniScan X3 and OmniScan X3 64 models.

Type Multigroup, multimode ultrasonic flaw detector
Size (W × H × D) 335 mm x 221 mm x 151 mm (13.2 in. x 8.7 in. x 5.9 in.)
Weight 5.7 kg (12.6 lb) (with 1 battery)
Hard Drive Capacity OmniScan X3 : Internal 64 GB SSD
OmniScan X3 64 : Internal 1TB SSD
extendable using an external USB drive
Storage Devices SDHC and SDXC cards or most standard USB storage devices
Compatible only with NTFS and FAT32 formats.
Max Onboard File Size 25 GB
GPS Yes (unless specified otherwise for some regions)
Alarms 3
Wireless Connection Yes – wireless LAN dongle included in the package (model varies according to region)
PA Connectors 1 connector
UT Connectors 4 (2 channels P/R)
Certifications ISO 18563-1:2015
ISO-22232-1:2020
Display
Type TFT LCD with resistive touch screen
Size 269 mm (10.6 in.)
Resolution 1280 × 768 pixels
Number of Colors 16 million
Viewing Angles Horizontal: −85° to 85°
Vertical: −85° to 85°
I/O Ports
USB 2.0 2 ports (one hidden behind the battery)
USB 3.0 1 port
Video Output Video out (HDMI)
Memory Card SDHC port
Communication Ethernet
I/O Lines
Encoder 2-axis encoder line (quadrature quadrature direction)
Digital Input 6 digital inputs, TTL
Digital Output 5 digital outputs, TTL
Acquisition On/Off Switch Through the configuration of a digital input
Power Output Line 5 V nominal, 1 A (short-circuit protected), and 12 V output at 1 A
External DC Supply
DC-IN Voltage 15 VDC to 18 VDC (min. 50 W)
Connector Circular, 2.5 mm pin diameter, center-positive
Battery
Type Lithium-ion battery
Capacity 87 Wh
Number of Batteries 2
Life 5 hours using 2 batteries (hot-swap capable)
PA/UT Configuration
Bit Depth 16 bits
Maximum PRF 20 kHz
Frequency
Effective Digitizing Frequency Up to 100 MHz
Display
Refresh Rate A-scan: 60 Hz; S-scan: 20 Hz to 30 Hz
Envelope (echo-dynamic mode) Yes: Volume-corrected S-scan (30 Hz)
A-Scan Height Up to 800%
Synchronization
On Internal Clock 1 Hz to 10 kHz
External Pace Yes
On Encoder On 2 axes: from 1 to 65,536 steps

Data Specifications

Processing
Maximum Number of A-Scan Data Points Up to 16,384
Real-Time Averaging PA: 2, 4, 8, 16
UT: 2, 4, 8, 16, 32, 64
Rectification RF, full wave, half wave+, half wave-
Filtering PA channel (OmniScan X3): 8 low-pass, 6 band-pass, and 4 high-pass filters
PA channel (OmniScan X3 64): 9 band-pass and 7 high-pass filters
UT channel: 8 low-pass, 6 band-pass, and 4 high- pass filters (3 additional filters when configured in TOFD)
Video Filtering Smoothing (adjusted to the probe frequency range)
Programmable TCG
Number of Points 32: One TCG (time-corrected gain) curve per focal law
Range PA (standard): 40 dB per step of 0.1 dB
UT: 100 dB per step of 0.1 dB
Maximum Slope PA (standard): 40 dB/10 ns
UT: 40 dB/10 ns

Acoustic Specifications

Model

OmniScan X3

OmniScan X3 64

Both

Pulser

PA Channel

PA Channel

UT Channels

Voltage

40 V, 80 V, and 115 V

10 Vpp, 20 Vpp, 40 Vpp, 80 Vpp, 120 Vpp, and 160 Vpp

85 V, 155 V, and 295 V

Pulse Width

Adjustable from 30 ns to 500 ns; resolution of 2.5 ns

Adjustable from 30 ns to 1000 ns (half period of bipolar pulse or duration of negative of pulse); resolution of 5 ns

Adjustable from 30 ns to 1,000 ns; resolution of 2.5 ns

Fall Time

< 10 ns

< 10 ns

< 10 ns

Pulse Shape

Negative square pulse

Bipolar negative-positive square pulse Negative square pulse

Output Impedance

28 Ω in pulse-echo
24 Ω in pitch-catch

35 Ω

< 30 Ω

Receiver

PA Channel

-

UT Channels

Gain Range

0 dB to 80 dB maximum input signal; 550 mVp-p (full-screen height).

0 dB to 80 dB; maximum input signal 900 mVp-p (full-screen height).

0 dB to 120 dB maximum input signal; 34.5 Vp-p (full-screen height).

Input Impedance

57 Ω ± 10% at 9 MHz in pulse-echo
100 Ω ± 10% at 9 MHz in pitch-catch

120 Ω ±10 % at 13 MHz

50 Ω in pulse-echo mode
50 Ω in pulse-receive mode

System Bandwith

0.5 MHz to 18 MHz

0.2 MHz to 26.5 MHz

0.25 MHz to 28 MHz

Beam Formation

PA Channel

-

UT Channels

Scan Type

Single, linear, sectorial, compound, and TFM

-

-

Maximum Aperture

OMNIX3-PATFM1664PR = 16 elements
OMNIX3-PATFM16128PR = 16 elements
OMNIX3-PATFM32128PR = 32 elements

OMNIX3-PATFM64128PR = 64 elements

-

Number of Receiving Elements

OMNIX3-PATFM1664PR = 64 receiving elements
OMNIX3-PATFM16128PR = 128 receiving elements
OMNIX3-PATFM32128PR = 128 receiving elements

OMNIX3-PATFM64128PR =128 elements

-

Number of Focal Laws

Up to 1024

-

-

Delay Range Transmission

0 µs to 10 µs in 2.5 ns increments

0 µs to 10 µs in 5 ns increments

-

Delay Range Reception

0 µs to 6.4 µs in 2.5 ns increments

-

-

TFM/FMC

Supported Modes

Pulse-echo: L-L, T-T, and TT-TT
Self-tandem: LL-L, TT-T, TT-L, TL-T, LT-T, TTT-TT, and TL-L

Number of Groups

Up to 4 simultaneous TFM groups

Maximum Aperture

64-element aperture for 64:128PR
64-element extended aperture (32:128PR only)
32-element extended aperture for 16:64PR and 16:128PR
128-element extended aperture for 64:128PR

Image Resolution

Up to 1024 × 1024 (1 M points) for each TFM group

Live TFM Envelope

Yes

Operating Environment

Ingress Protection Rating

IP65 certified (completely protected against dust and water jets from all directions (6.3 mm nozzle))

Shockproof Rating

Drop tested according to MIL-STD-810G

Intended Use

Indoor and outdoor use

Altitude

Up to 2,000 m (6,561 ft)

Operating Temperature

−10 °C to 45 °C (14 °F to 113 °F)

Storage Temperature

−20 °C to 60 °C (−4 °F to 140 °F) (with battery inside)
−20 °C to 70 °C (−4 °F to 158 °F) (with no battery inside)
